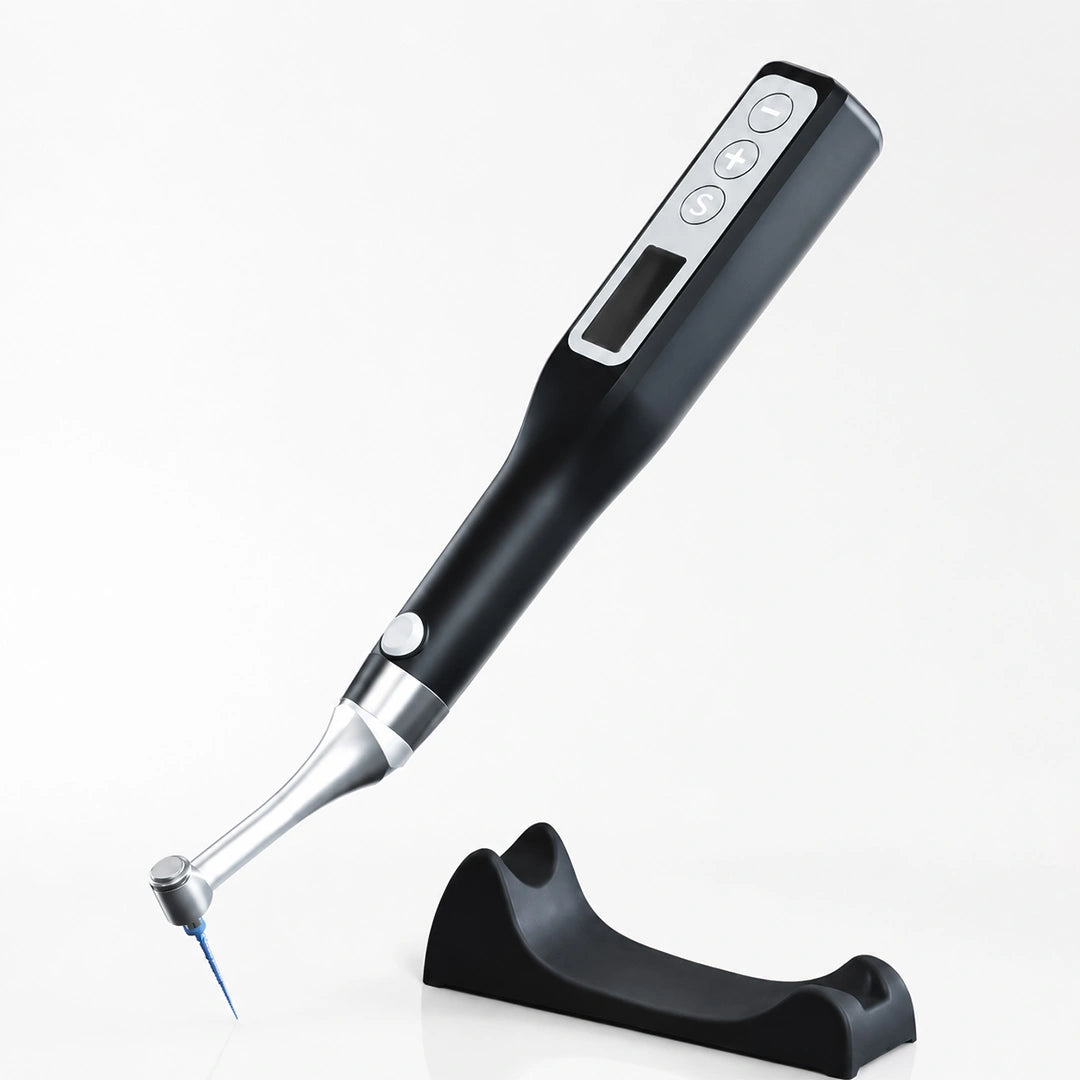

Smart Endo Motor with Built-In Apex Locator

The Smart Endo Motor is a true 2-in-1: a high-torque root canal motor and a built-in apex locator combined in one cordless handpiece, so you can shape the canal and track the file position in real time without switching devices. With 11 working modes, a 360° adjustable head, and auto-stop safety, it makes endodontic treatment faster, safer, and less reliant on repeat X-rays.

Built-in apex locator for real-time canal tracking

Precisely locates the apical foramen as you work, improving accuracy, cutting reliance on X-rays, and raising the success rate of root canal treatment.

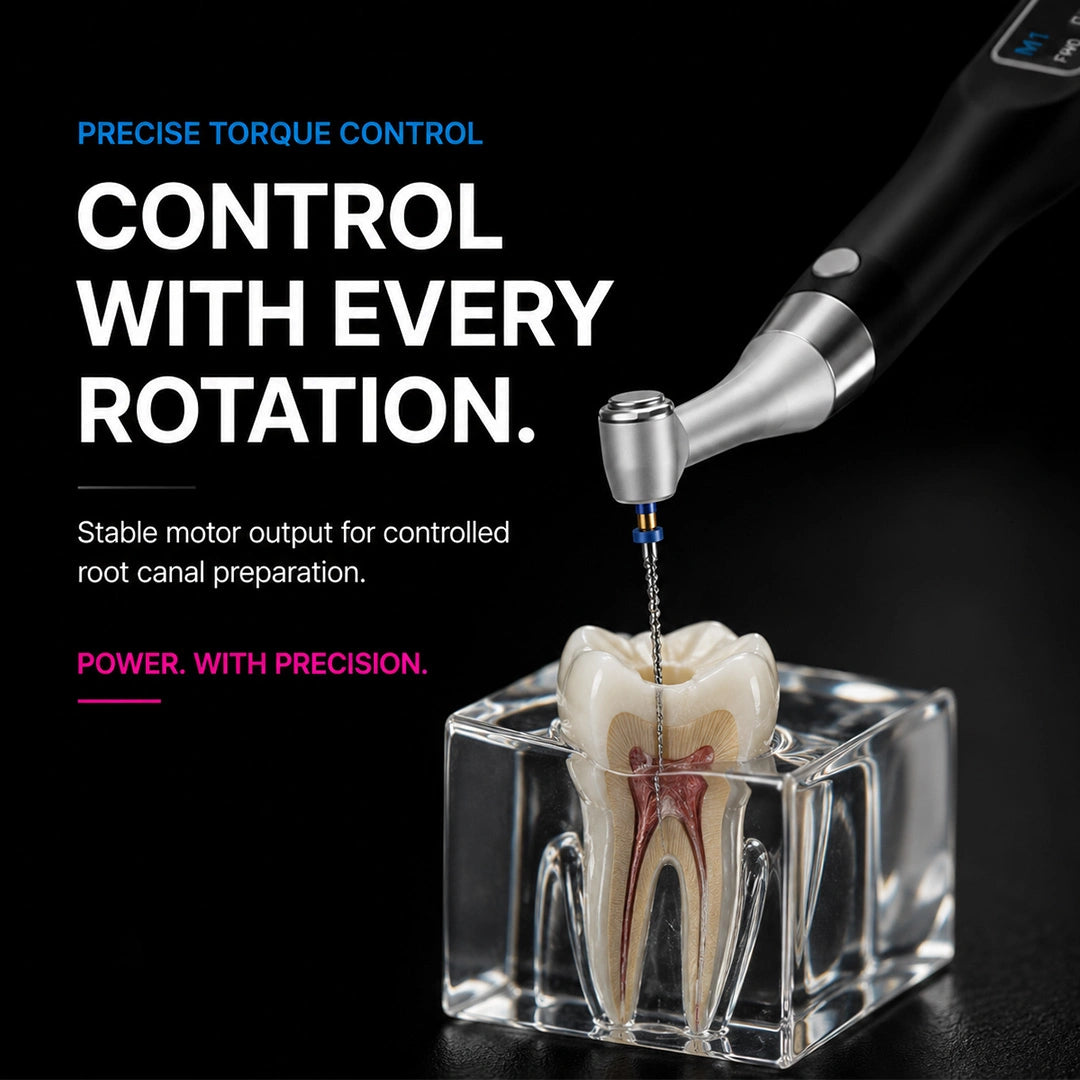

Strong, stable torque for cleaner shaping

A high-performance motor delivers steady torque that holds through the canal, reducing preparation time and giving you consistent results tooth after tooth.

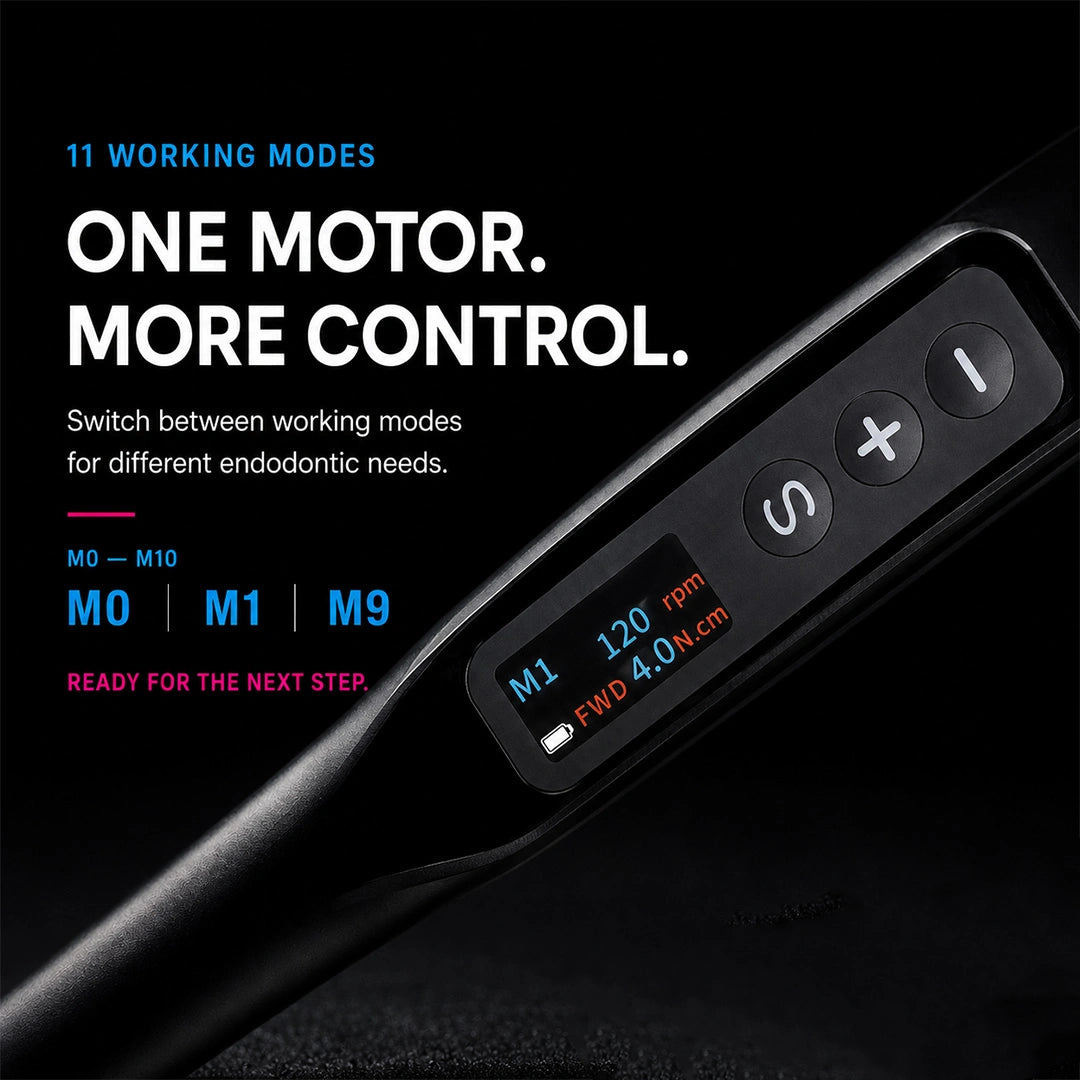

11 working modes for quick switching

Save and recall settings for different canal conditions, so you can move between cases without stopping to reprogram mid-treatment.

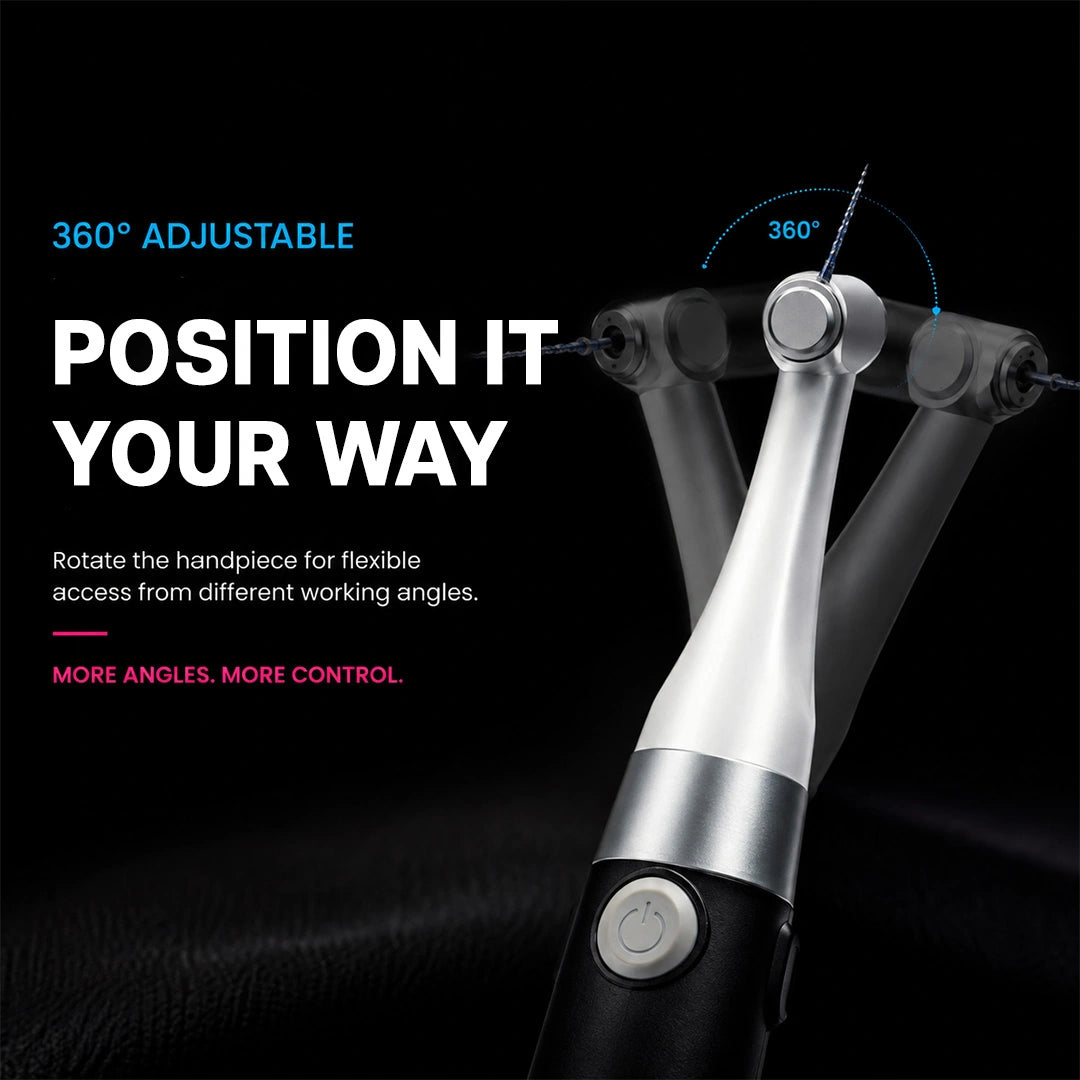

360° adjustable handpiece

The head rotates a full 360° to reach any tooth position, giving you a comfortable angle on posterior and hard-access canals.

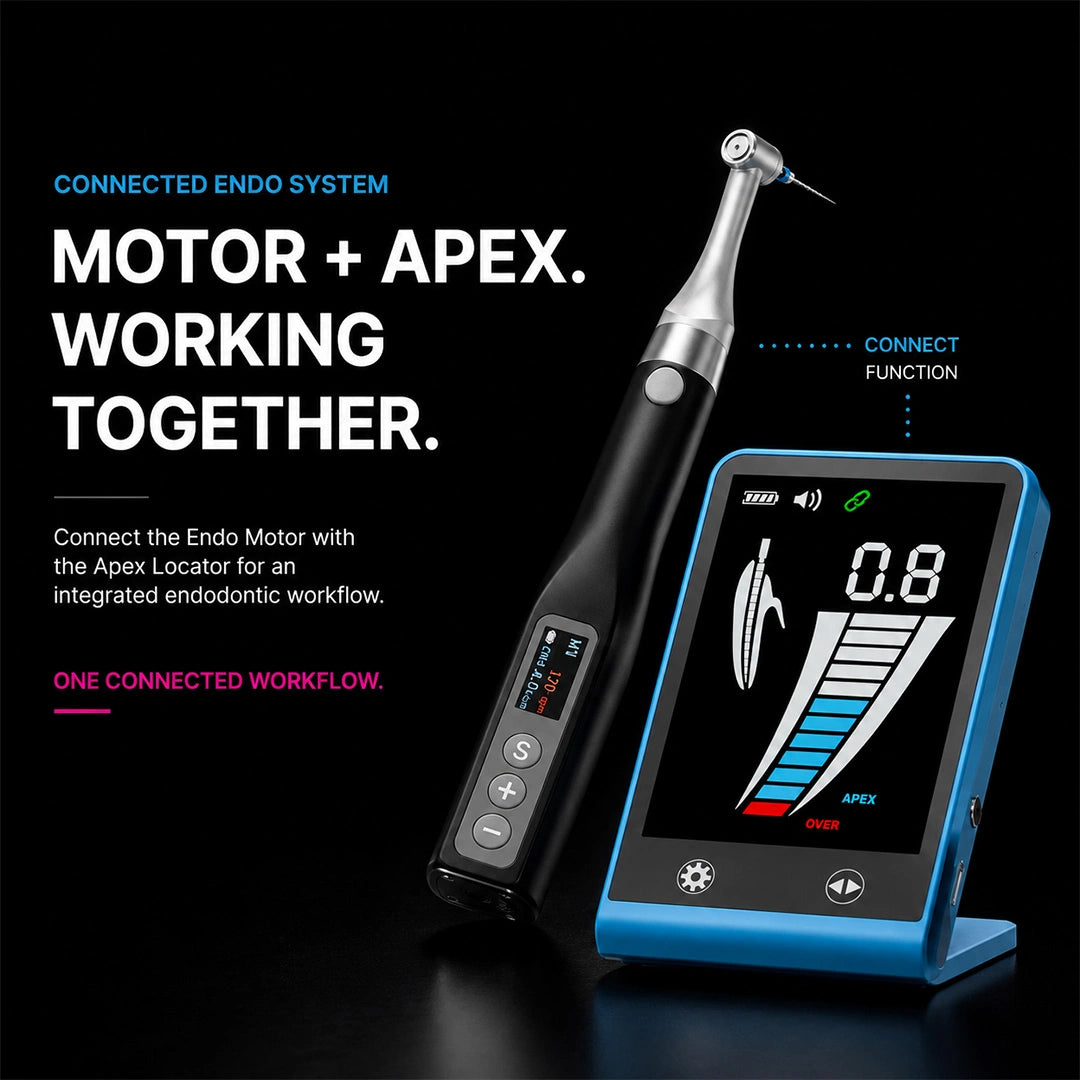

Auto-stop safety and connect function

Auto-stop prevents over-instrumentation, reducing the risk of file separation and canal damage, while the connect function syncs the motor with an external apex locator display for a clearer view during treatment.

Built for endodontic treatment

Ideal for general dentists doing routine root canals and endodontists handling complex, curved, or hard-access canals, in a cordless format that suits both chairside and mobile practice.

Key features

• 2-in-1 endo motor and apex locator
• 11 saveable working modes
• 360° adjustable handpiece
• Auto-stop over-instrumentation safety
• Forward and reverse rotation
• Connect function for external apex display

Specifications

• Speed range: 120–1000 rpm
• Torque range: 0.6 N·cm – 4.0 N·cm
• Power: ICR18500 3.7V, 1000mAh, ±10%
• Weight: 119g
• Display: OLED (mode, speed, torque, direction, battery)
• Apex locator: built-in
