See every margin, every canal, every detail with magnified, illuminated precision right where you need it.
This complete loupes and headlight kit gives you clinical magnification and dedicated LED illumination in one system. Available in 2.5X or 3.5X magnification with a 420mm working distance, the loupes position you at a natural, ergonomic distance from the treatment area while bringing fine anatomical and restorative detail into clear focus. No more straining your eyes or hunching over the patient to see what you need to see.

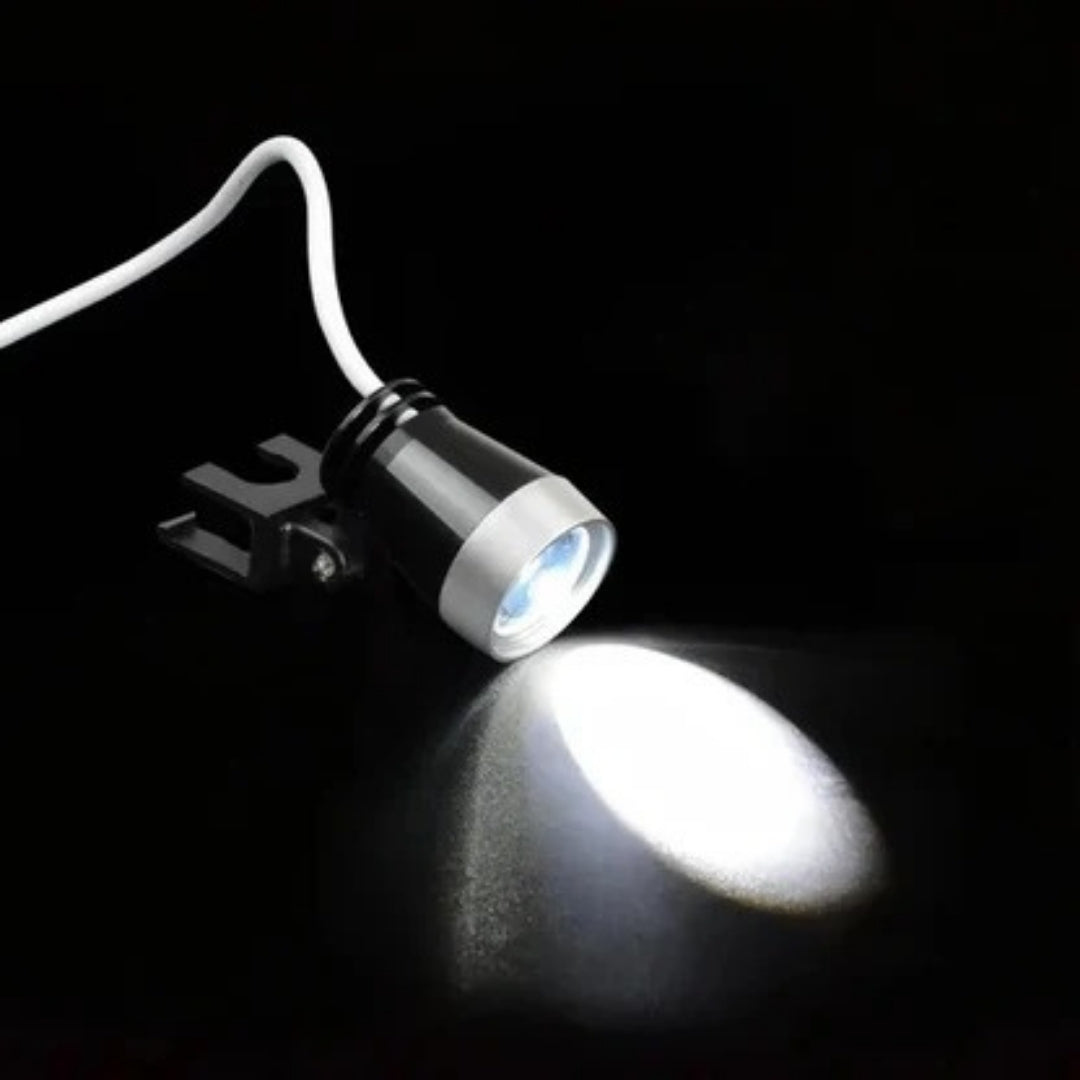

The included 3W LED headlight mounts directly to the frame and delivers 15,000 to 30,000 lux of bright, shadow free light directly into the oral cavity. Adjustable brightness lets you dial the output to match the procedure, from routine exams to detailed restorative work.
A wide 60mm field of view with 80mm depth of field means you see more of the working area at once without constantly repositioning. Adjustable interpupillary distance and viewing angle let you customize the optical alignment to your eyes so the image stays comfortable and clear through long appointments. The flip up frame lets you switch between magnified and normal vision instantly without removing the loupes.

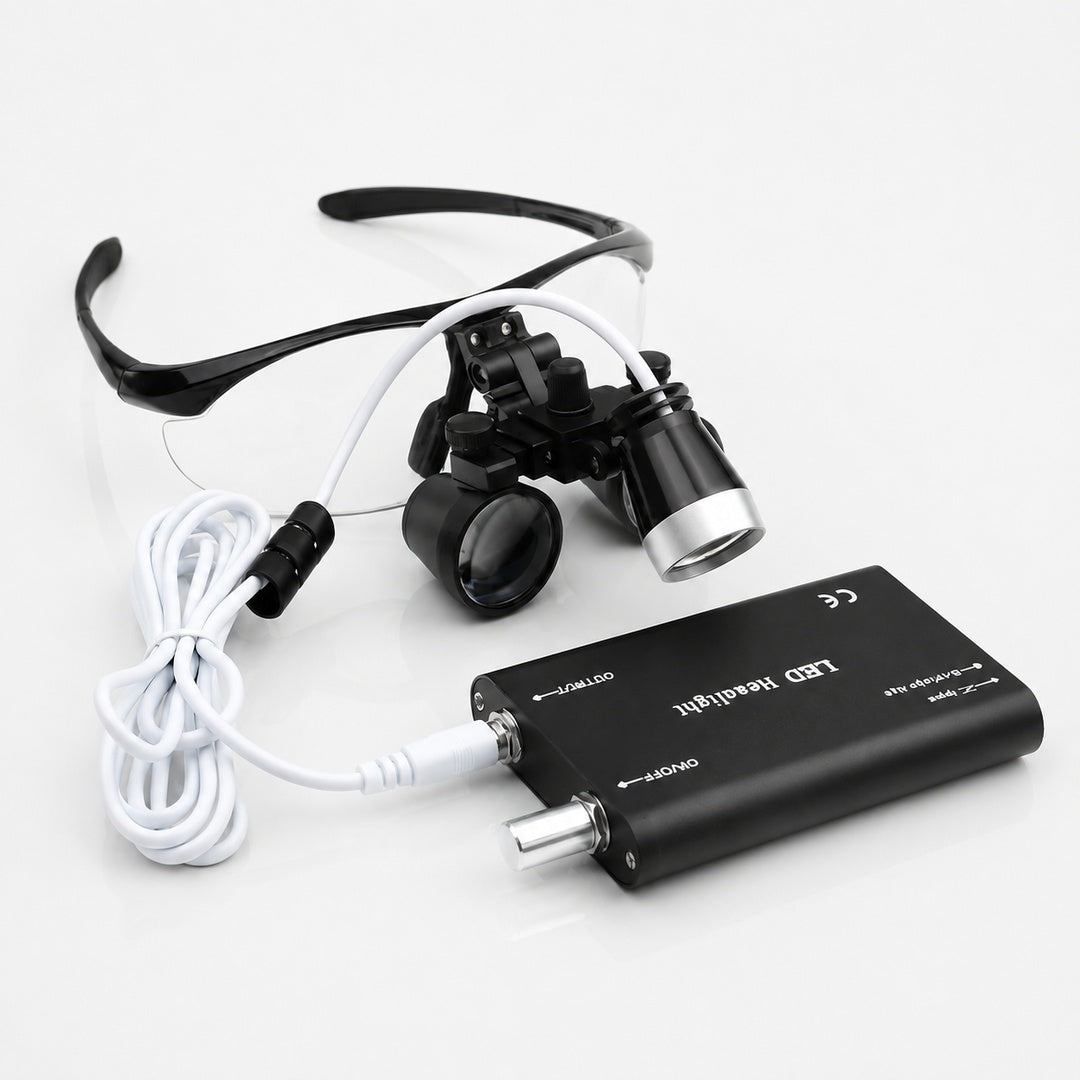

Soft touch padding on the frame and a total weight of just 400g keep the loupes comfortable across a full day of procedures. The rechargeable lithium ion battery delivers over 5 hours of continuous headlight runtime, and the AC100 to 240V adapter charges it anywhere in the world.

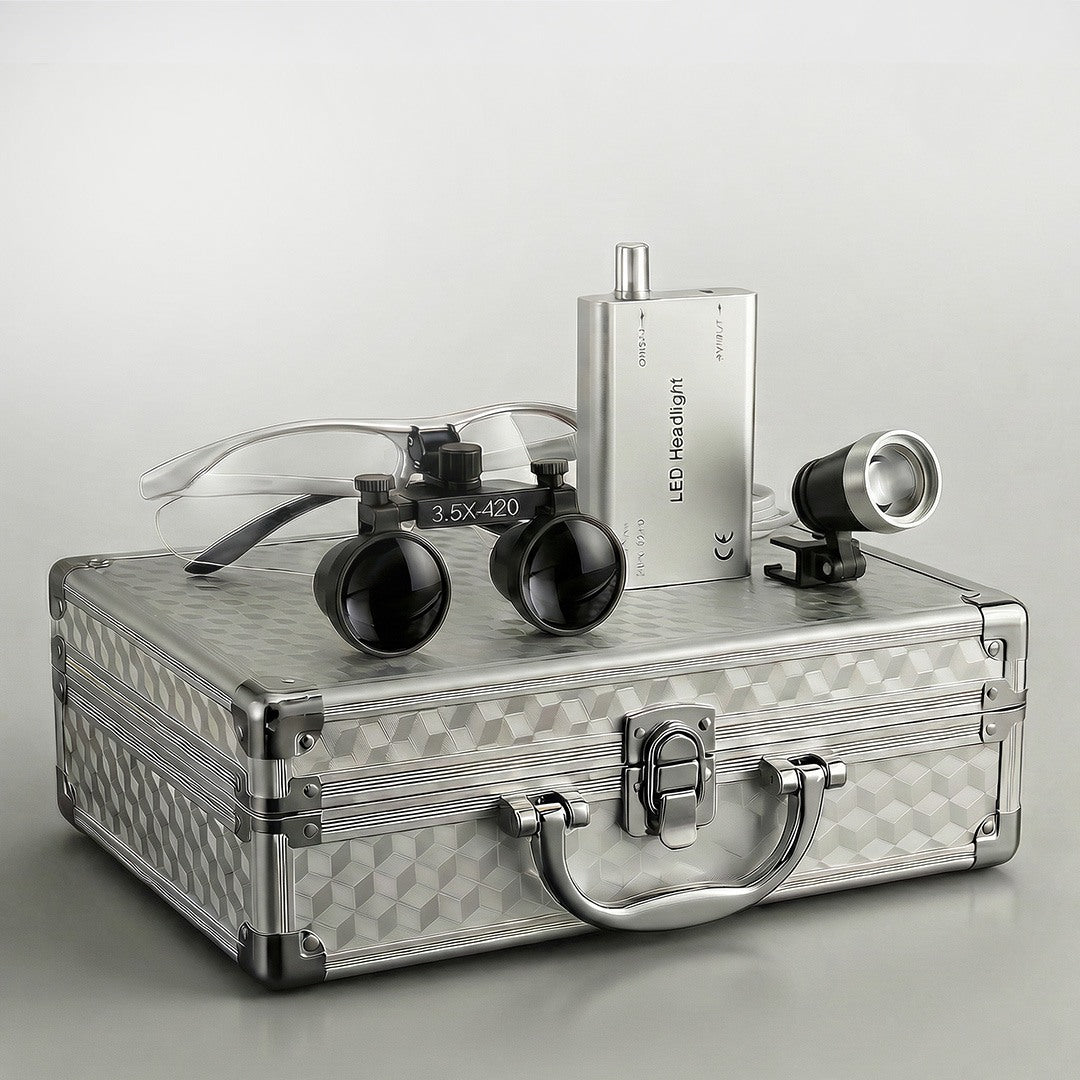

Everything ships in a foam padded metal carrying case ready to use out of the box.
Features
2.5X or 3.5X magnification (TTL mount)
3W adjustable brightness LED headlight
15,000 to 30,000 lux illumination
420mm working distance
60mm field of view with 80mm depth of field
Adjustable interpupillary distance and viewing angle
Flip up frame design
Scratch resistant coated lenses
Soft touch frame padding
Lightweight construction (400g total)
Rechargeable lithium ion battery (5+ hours runtime)
LED lifespan up to 10,000 hours
US and EU plug options
CE certified

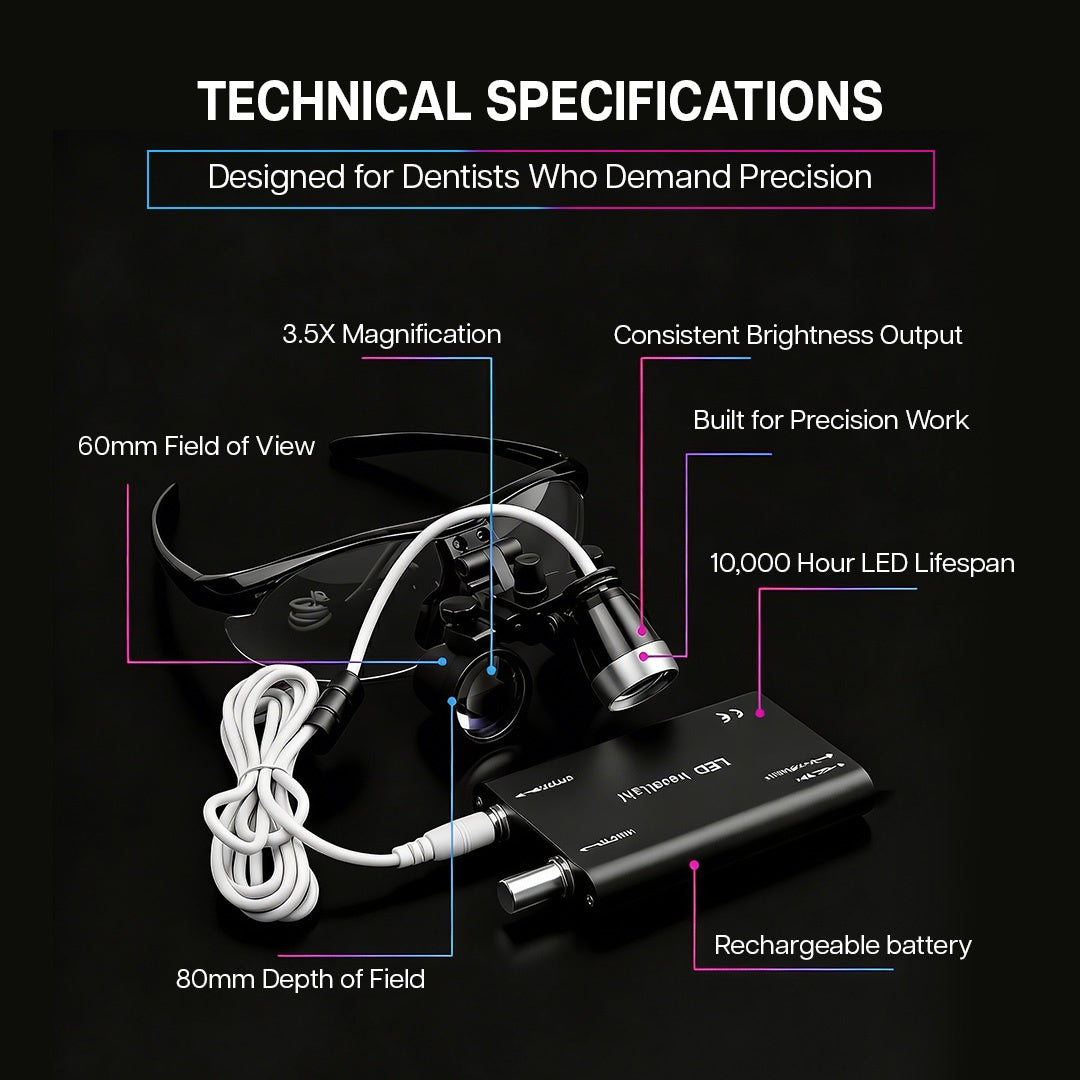

Specifications
Magnification: 2.5X or 3.5X
Mount Type: TTL
Working Distance: 420mm
Field of View: 60mm
Depth of Field: 80mm
LED Power: 3W
Illumination: 15,000 to 30,000 lux
Battery: Rechargeable lithium ion
Battery Runtime: 5+ hours
Charging Adapter: AC100 to 240V (US or EU plug)
Weight: 400g
Colors Available: Black, White
Package Includes
1x Dental Loupes (2.5X or 3.5X TTL mount)
1x 3W LED Headlight
1x Rechargeable Lithium Ion Battery
1x AC100 to 240V Charging Adapter
1x Flexible Headband
1x Protective Safety Glasses
1x Cleaning Cloth
1x Wire Clip
1x Flathead Screwdriver
1x User Manual
1x Foam Padded Metal Carrying Case
